TOP-SIM05
MOLEX SIM Card reader for PCB mounting with button release TOP-SIM05
Brand : Molex
Molex part number: 91228-3001(sim card holder) + 91236-0001 (back cover)
TOP part number: TOP-SIM05
2.54MM pitch with 8pin
Package:
1. 400pcs/ reel
2. 12pcs/tube
Key Specifications:
1)Sim card Connector
2)Accepts standard micro SIM cards
3)High temperature SMT materials sim card holder
· Accepts standard micro SIM cards
· 5000 mating cycles, gold-plated
· High temperature SMT materials
· Integral guide rails
· Low cost, all plastic configuration
Special Features:
|
Packaging |
Tape & Reel (TR) |
|
Standard Package |
400 pcs |
|
Card Type |
SIM Card |
|
Number of Positions |
8 (6 + 2) |
|
Pitch (mm) |
2.54 |
|
Connector Type |
Connector and Ejector |
|
Insertion, Removal Method |
Push In, Push Out |
|
Ejector Side |
Left |
|
Mounting Type |
Surface Mount, Right Angle |
|
Features |
Board Guide, Switch |
|
Height Above Board |
0.118" (3.00mm) |
|
Mounting Feature |
Normal, Standard - Top |
|
Contact Finish |
Gold |
|
Contact Finish Thickness |
3.9µin (0.10µm) |
Applications:
· Cellular phones
· Radio modules
· Industrial RF devices
· PCMCIA/CF wireless cards
Advantage:
Smart card connector(Narrow style ) , Apply to Water ,Electricity ,Gas meter, STB, Card reader, IC lock etc....ROSH Certifications

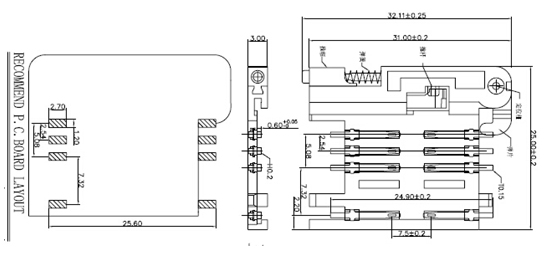

Drawing:

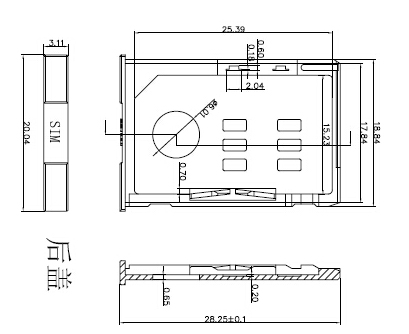

Back Cover drawing:
