TOP-SIM01-2
2.54MM Pitch SIM Card holder / SAM card holder with HINGED TYPE 6 pin TOP-SIM01-2
6 pin 2.54mm SIM card holder
8 pin 2.54mm SIM card holder
Package:
1. 800pcs/ reel
2. 20pcs/tube
Overview:
Cards are also used for identification of readers/writers and Point of Sale terminals. These types of Card are sometimes referred to as SAMs (Secure Application Module) card.
The TOP-SIM01-2 device has been designed to meet a variety of customer applications. Key features include its low profile package, just 2.5mm high, together with its reliable card detection switch which uses a push and slide locking mechanism with a hinged cover.
Introduction:
l SAM/SIM CARD READER
l LOW PROFILE DESIGN WITH HINGED COVER
l PUSH & SLIDE LOCKING MECHANISM ASSURES HIGH RETENTION AND OPERABILITY
l OPERATING TEMPERATURE: -40°C ~ + 85°C
l INSULATION MATERIAL:
Thermoplastic, UL 94V-0 BLACK
l 6 PIN or 8 PIN SURFACE MOUNT DEVICE
l CARD DETECTION SWITCH
Specification:
1. Current rating: 0.5 AMP Max.
2. Dielectric withstanding voltage:500v AC R.M.S For one minute
3. Insulation resistance: 1000 MΩMin. AT 500V AC
4. Contact resistance 30 mΩMax.
5. Operation temperature: -25°C to +85°C
6. Durability: 5000 Cycles
7. Processing temp: 240°C for 30~60 seconds Max.
Material:
1. Body: PPS UL 94V-0 Rated, color: black
2. Cover: LCP UL 94V-0 Rated, color: black
3. Contact: Phosphor Bronze
4. Contact plating: Gold plating over nickel
On contact area, tin plating on solder tail
Features:
|
Packaging |
Tape & Reel (TR) |
|
Standard Package |
800 pcs |
|
Card Type |
SIM Card |
|
Number of Positions |
8 |
|
Connector Type |
Connector and Ejector |
|
Insertion, Removal Method |
Hinged Lid |
|
Ejector Side |
- |
|
Mounting Type |
Surface Mount, Right Angle |
|
Pitch |
2.54mm |
|
Features |
Board Guide |
|
Height Above Board |
0.098" (2.50mm) |
|
Mounting Feature |
Normal, Standard - Top |
|
Contact Finish |
Gold |
|
Contact Finish Thickness |
31.5µin (0.80µm) |
Application:
l GSM APPLICATIONS
l MOBILE PHONES
l POINT OF SALE TERMINALS
l PORTABLE DEVICES
l PERSONAL SMART CARD DEVICES

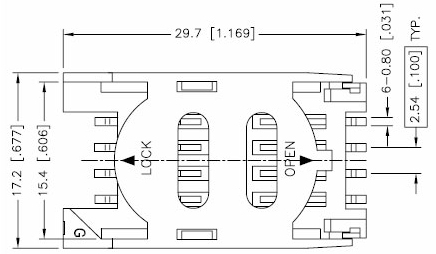

Drawing:
We can also supply many other types of SIM Card holders, with good quality and cheaper price, please contact our sales team for more information.
