HL6528
Sierra wireless GSM GPRS Module HL6528 with dual sim dual standby

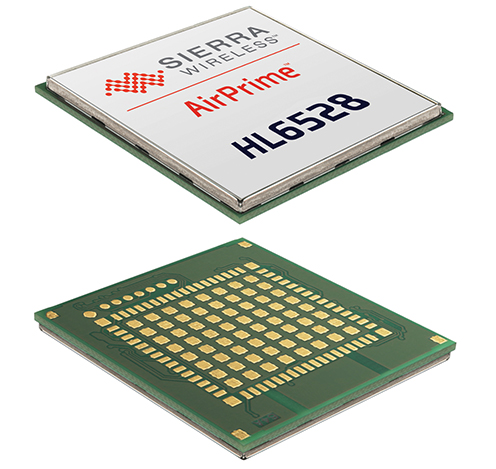

HL6528 : GSM/GPRS module
HL6528-G: GSM/GPRS+GNSS (GPS+Glonass) Module
Product Introduction:
The AirPrime® HL Series modules is the smallest,
scalable, flexible solution in a compact and easy-to-integrate form factor
that is completely interchangeable among 2G, 3G, and 4G* technologies. Compact
form factor, network scalability, and ready-to-use firmware upgrades make these
modules ideal for industrial M2M solution designs where size and deployment
longevity are important considerations.
As an option to soldering, adding flexibility,
the HL series Snap-in socket can be soldered on the same PCB pattern.
HL6528-G
HL6528-G is a 2G GSM/GPRS Quad band module with voice and an integrated GPS+Glonass receiver. Supported frequency bands: 2G 850/900/1800/1900. Form factor, SMD LGA package. Scalability between 2G, 3G and 4G with the same small size (22x23 mm), footprint and core pin layout. Very low power consumption and the separate base band and PA power supply inputs simplifies power supply design and extend operational life for battery powered devices.. Support for AirVantage management services is integrated.
It provides voice and data connectivity in a single compact and easy-to-integrate form factor . The G version have an integrated GNSS receiver (GPS+Glonass).
Key Features
GSM/GPRS/EDGE/HSUPA/HSDPA/LTE
GNSS (GPS + GLONASS)
Dual SIM Dual Standby technology for maximum network connectivity
Smallest 2G to 4G form factor on the market
Use one design for your 2G, 3G, and 4G deployments
Ready-to-use firmware upgrades using AirVantage Management Service
Choose between LGA solder-down or snap-in integration
Interfaces
UART: 1x 8 wire
SPI: 1x for debug
ADC: 2x
GPIO: 8
PWM (Buzzer): 2x
Tx Burst indicator
SIM interface: 1.8/3V
Audio
Analog audio: 1x microphone, 1x speaker
Digital audio: PCM
Codec: FR, EFR, HR, AMR
Echo cancellation
Noise reduction
DTMF
Data :
|
FORM FACTOR |
LGA |
|
GSM/GPRS |
850/900/1800/1900 |
|
APPROVALS |
|
|
Regulatory |
CE, FCC, PTCRB, GCF, IC, Anatel,CCC |
|
Carrier |
Target: Rogers, Vodafone, Orange Telefonica |
|
CURRENT CONSUMPTION |
|
|
Power Supply for Extended Battery LIfe |
2.8V supports |
|
Alarm (leakage only) |
35μA |
|
Standby and Idle (Sleep) |
1mA |
|
GSM/GPRS max |
360 mA |
|
AUDIO |
|
|
Analog Audio |
yes |
|
Digital Audio |
yes |
|
Codec |
HR,FR,EFR,AMR |
|
Echo Cancellation & Noise Reduction |
yes |
|
DTMF |
yes |
INTERFACES
UART
SPI
ADC
GPIO
PWM (Buzzer)
Tx Burst Indicator
SIM interface 1.8V/3V
LOCATION SOLUTION
GPS &
Glonass Sirf V
CLOUD SERVICES
FOTA
through AVMS
INTERNET SERVICES
TCP+UDP+FTP+HTTP+HTTPS
DRIVERS
Ril driver
for Win CE & Linux
DEVICE DIMENSIONS
22x23x2.5
mm
TEMPERATURE RANGE
- 40°C / +
85°C
specificatios:
The HL6528 supports quad-band GSM/GPRS and enhanced GNSS (GPS and GLONASS). The HL6528 also provides enhanced multi-network coverage, thanks to Dual SIM Dual Standby technology, which allows continuous operations.
Also available, the HL8548 additionally supports pentaband HSDPA/HSUPA and quad-band EDGE for global coverage. Both the HL6528 and the HL8548 offer extremely low power consumption and an extended power supply range, significantly improving battery-powered applications.

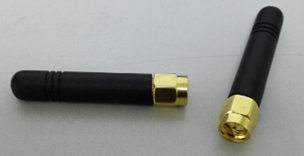

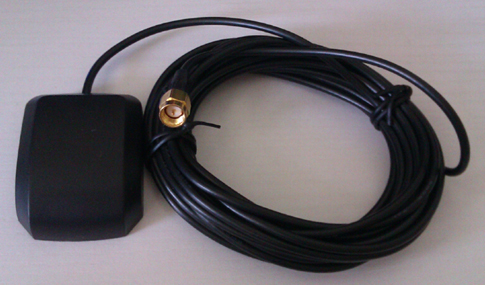

fitting of HL6528:
