SIM800
SIMCOM wireless communication Quad- band GSM GPRS module SIM800 Pin to pin SIM900
Specifications
SIM800 is a complete Quad- band GSM/GPRS solution in a SMT type which can be embedded in the customer applications. SIM800 support Quad - band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 24*24*3 mm, it can fit into slim and compact demands of customer design. Featuring Bluetooth and Embedded AT, it allows total cost savings and fast time- to - market for customer applications.
General features
|
• Quad-band |
850/900/1800/1900MHz |
|
• GPRS |
multi-slot class 12/10 |
|
• GPRS |
mobile station class B |
|
• Compliant to GSM phase 2/2+ |
– Class 4 (2 W @ 850/900MHz) |
|
– Class 1 (1 W @ 1800/1900MHz) |
|
|
• Bluetooth: |
compliant with 3.0+EDR |
|
• Dimensions: |
24*24*3mm |
|
• Weight: |
3.14g |
|
• Control via AT commands |
(3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands) |
|
• Supply voltage range |
3.4 ~ 4.4V |
|
• Low power consumption |
|
|
• Operation temperature: |
-40℃~85℃ |
Specification for GPRS
Data
• GPRS class 12: max. 85.6 kbps
(downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• CSD up to 14.4 kbps
• USSD
• Non transparent mode
Specifications
for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode
Software
features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• E-MAIL
• DTMF
• Jamming Detection
• Audio Record
• TTS (optional)
• Embedded AT (optional)
• Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
• AMR
– Half rate (HR)
– Full rate (FR)
• Hands-free operation
（Echo suppression）
Interfaces
• 68 SMT pads including
• Analog audio interface
• PCM interface(optional)
• SPI interface (optional)
• RTC backup
• Serial interface
• USB interface
• Interface to external SIM 3V/1.8V
• Keypad interface
• GPIO
• ADC
• GSM Antenna pad
• Bluetooth Antenna pad
Compatibility
• AT cellular command interface
Certifications
• CE
• GCF
• FCC
• TA
• CTA
• CCC
• ROHS
• REACH
• ANATEL
• A-TICK

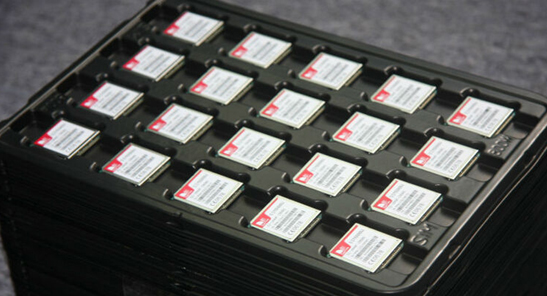

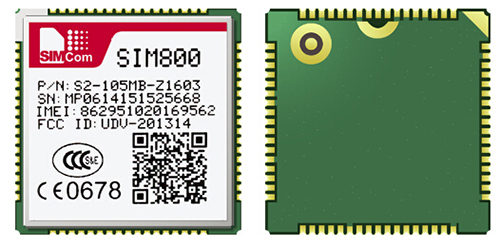

Pictures Display:
