SIM800C

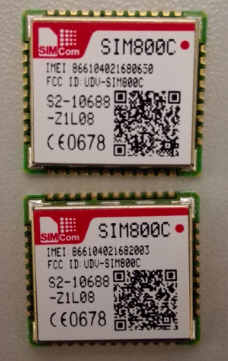

Quad- band GSM GPRS module --- SIM800C
sim800c module SIMCOM newest and cheapest GSM/GPRS module replace SIM800 SIM900 with small size and LCC interface
SIM800C supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 17.6*15.7*2.3mm, it can smoothly fit into slim and compact demands of customer design.
General features
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+ – Class 4 (2 W @ 850/900 MHz) – Class 1 (1 W @ 1800/1900MHz)
•FM: 76~109MHz worldwide bands with 50KHz tuning step
•Dimensions: 17.6*15.7*2.3 mm
•Weight: 1.3g
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40°C~85°C
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD up to 14.4 kbps
•USSD
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•DTMF
•Jamming Detection
Specifications for voice
•Tricodec – Half rate (HR) – Full rate (FR) – Enhanced Full rate (EFR)
•AMR – Half rate (HR) – Full rate (FR)
•Hands-free operation (Echo suppression)
