HUA WEI wireless communication 3G module MU709 supportWCDMA/HSDPA/GSM
There are LGA and mini PCIE 2 type package

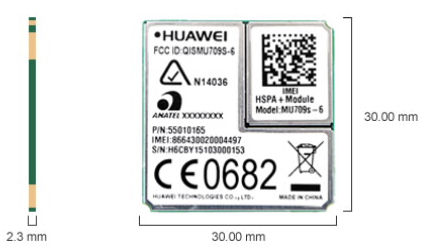

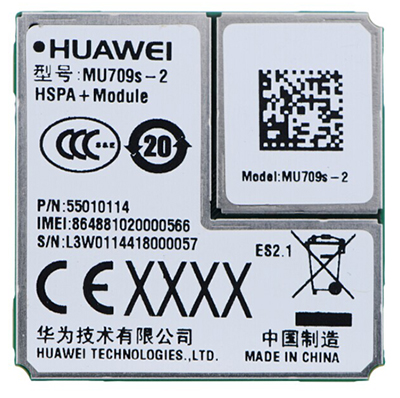

MU709 LGA
MU709 family is high-quality designed HSPA+ module in small size and Huawei standard LGA form factor which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.
Based on Huawei standard LGA technology, the M709 modules provide a smoothly path to Huawei LTE high-speed modules.
MU709 family supports 21.6Mbps downlink data rate, providing data and voice service under global GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+ networks. The module also include enhanced features like embedded TCP/IP stack, SMTP, FOTA, Jamming Detection, Netscan, CMUX, SSL, eCall, Huawei enhanced AT commands, cell lock, network monitoring, DTMF decoder, baud rate adaptation, multi PDP, SIM swap, .etc.
With Huawei standard LGA form factor, it is easy to migration from MU509 family, MC509 and MU609 to MU709 family and the LTE module ME909.
There are two variants which meet different market requirements:
MU709s-2(UMTS/HSPA+ 900/2100MHz), for European, China market.
MU709s-6(UMTS/HSPA+ 850/1900/2100 MHz), for Asia pacific, Latin America market.

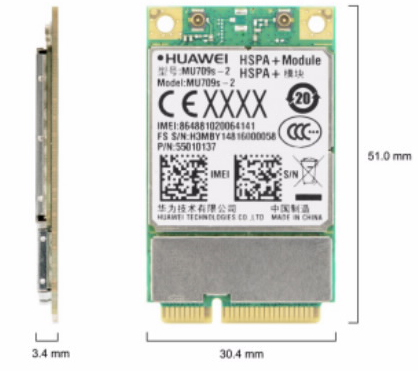

MU709 mini PCIE
MU709 Mini PCIe is a variant of MU709 with standard Mini PCIe form factor. It is high-quality designed HSPA+ module which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.
MU709 Mini PCIe supports 21.6Mbps downlink data rate, providing data and voice service under global GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+ networks. The module also include enhanced features like embedded TCP/IP stack(IP,TCP,UDP,SSL, HTTP,FTP,SMTP), FOTA, Jamming Detection,
Netscan, CMUX, SSL, eCall, Huawei enhanced AT commands, cell lock, network monitoring, DTMF decoder, baud rate adaptation, multi PDP, SIM swap, .etc.
There are two variants which meet different market requirements:
MU709s-2 Mini PCIe(UMTS/HSPA+ 900/2100MHz), for European, China market.
MU709s-6 Mini PCIe(UMTS/HSPA+ 850/1900/2100 MHz), for Asia pacific, Latin America market.
All Huawei modules comply with the RoHS directive and Regional certification.
Specification:
|
Info. |
LGA |
mini PCIE |
|
Form Factor |
145 pin LGA |
mini PCIE |
|
Size(mm) |
30x30x2.3 mm |
30.4x51x3.4 |
|
Weight(g) |
5g |
12g |
|
Bands
|
HSPA+/UMTS dual-band 900/2100 MHz |
|
|
GSM/GPRS quad-band 850/900/1800/1900 MHz |
||
|
Data Transfer Rate |
Downlink:21.6 Mbps, Uplink: 5.76 Mbps |
|
|
Interface |
Antenna interface |
2 Antenna connectors |
|
1*8 UART & 1*2 UART |
PCIe interface |
|
|
USB 2.0 High speed |
USB 2.0 High speed |
|
|
PCM Voice |
PCM Voice |
|
|
JTAG |
SIM Interface (1.8V/3.0V) |
|
|
SIM Interface (1.8V/3.0V) |
Power supply |
|
|
GPIOs |
Reset |
|
|
Power supply |
|
|
|
Reset |
|
|
|
Power_On off |
|
|
|
Power Supply |
3.3 V to 4.2 V (typical: 3.8 V) |
3.0 V to 3.6 V (typical: 3.3 V) |
|
Temp Range |
Normal Operation: -40℃to 85℃ |
|
|
Voice |
PCM Voice |
|
|
Special Features |
FOTA |
same as LGA |
|
Firmware update via USB |
||
|
STK |
||
|
Jamming Detection |
||
|
Netscan |
||
|
CMUX |
||
|
SSL |
||
|
eCall |
||
|
Operating System |
Linux, Android |
|
Key Benefit
MU709 is a high-speed (21M) M2M industrial grade wireless module, Huawei LGAseries package, compatible with the MU509 and MU609 series, compatible withnext-generation LTE module PIN-to-pin; also has a standard Mini PCIe form,select clients more flexibility.
MU709 provide high quality voice, SMS function, rich extension function, GPS, FOTA, Huawei has extended AT command set
