UC20 MINI PCIE
QUECTEL Wireless communication 3G UMTS HSPA+ module UC20 with mini PCIE package
There are LGA and mini PCIE 2 type
E(for Europe)
A(for America)
G(for Global)
Description:
UC20 Mini PCIe is the
latest Quectel UMTS/HSPA+ module featuring a maximum data rate of 14.4Mbps
downlink and 5.76Mbps uplink. It is designed to provide customers with global
network coverage on the connectivity of HSPA+/WCDMA, and it is also fully
backward compatible with existing EDGE and GSM/GPRS networks through multiband
combination of dual-band WCDMA and quad-band GSM.
The tiny profile of 51.0×30.0×4.9mm in standard
Mini PCIe form factor and highly integration level enable integrators and
developers to easily design their applications and truly benefit from low power
consumption and convenient Plug and Play Function.
With an extended temperature range from -40°C up
to 80°C, UC20 Mini PCIe functions reliably in extreme environments for use
outdoors or inside at sites that lack cooling and heating systems.
Specification:
|
Packing |
52-pin mini PCIE |
|
|
Dimensioins |
51*30*4.9mm |
|
|
3G |
UMTS/HSDPA |
|
|
Frequency Range(MHz) |
E(for Europe) |
|
|
A(for America) |
||
|
800/850/900/1900/2100@UMTS |
G(for Global) |
|
|
Weight(approx.) |
9.8g |
|
|
Temperature Range |
_40°C to +85°C |
|
|
USB Serial Drivers |
● Windows XP, Windows Vista, |
|
|
Windows 7, Windows 8 |
||
|
● Windows CE 5.0/6.0 |
||
|
● Linux 2.6/3.0 |
||
|
● Android 2.3/4.0 |
||
|
Flexible Applications |
● GPS |
|
|
● GLONASS |
||
|
● eCall |
||
|
Special Features |
● Rx-Diversity |
|
|
● QuecFOTA |
||
|
● QuecLocator* |
The DPO feature
UC20 Mini PCIe provides power saving solutions by DPO (Dynamic Power
Optimization), thus extending battery life, maximizing talk and standby time. DPO is a power-saving solution which attempts to turn off GNSS RF parts, reduces current consumption up to 50% without impact on TTFF.
The DPO feature attempts to reduce power consumption by turning the RF(and associated hardware) on just long enough to acquire the satellite signals. It can be activated only when there is no need to decode navigation data because the GPS receiver has the GPS time knowledge and ephemeris(or XTRA-based almanac corrections) needed to compute the location
UC20 Mini PCIe supports eCall function
A car will have an electronic safety system automatically calling emergency services in case of a serious accident. Even if you are unconscious, the system will inform rescue workers of the crash site|#@@#|s exact whereabouts, and the rescues will be on its way within minutes.
The system is named as "eCall”
Target Application :
Security Systems
Mobile Portable Devices
Automotive
Smart Metering
Routers & Data Cards
Wireless POS
Tracking

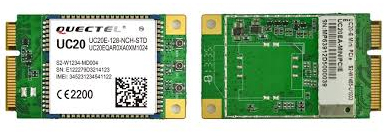

MODULE SHOW:
