MC8705
Sierra wireless 3G module MC8705 with Qualcomm|#@@#|s MDM8200A chipset
Product Introduction
The Sierra Wireless AirPrime MC8705 embedded module offers quad-band HSPA+ data speeds (up to 21 Mbps peak download speeds) across all 3G/HSPA networks operating in Australia and New Zealand.
In addition the MC8705 offers integrated GPS (through support for Qualcomm|#@@#|s gps One technology) allowing developers to design in one module for both high speed cellular and GPS.
The HSPA+ data speeds of the MC8705 allow developers to expand their applications into areas requiring higher bandwidth including video download, 3G broadband ethernet, and internet access.
The MC8705 replaces the MC8700 HSPA+ quad-band module. Advantages of the new module include support for GPS and lower prices.
Key Features
§ HSPA+ with peak downlink speeds up to 21 Mbps and peak uplink speeds up to 5.76 Mbps
§ Support for GPS including, Standalone, Assisted and gpsOneXtra
§ Uses Qualcomm|#@@#|s MDM8200A chipset
§ Replaces and updates MC8700 in a cost reduced package
|
1 |
1. High-speed downlink HSPA + 21Mbps, uplink 5.76Mbps |
|
2 |
2. Support standalone GPS and A-GPS, GPS ONE |
|
3 |
3.Complete around 3.FCC, CE certification and other world |
|
4 |
4.800 / 850/900/1800/1900 / 2100MHz |
|
5 |
5. Online stability and support WINDOW, LINUX, Android system |
|
6 |
6. High-speed downlink HSPA + 21Mbps, uplink 5.76Mbps |
|
7 |
7. Support standalone GPS and A-GPS, GPS ONE |
|
8 |
Operating Systems :Windows XP, Windows Vista, Window 7,Linux |
Information:
|
Air Interface |
HSUPA |
|
Peak Download Rate |
7.2 Mbps |
|
Peak Upload Rate |
5.76 Mbps |
|
Frequency Bands |
WCDMA 850/900/1900/2100 MHz |
|
Regulatory Approvals |
FCC, IC, CE, GCF-CC, PTCRB |
|
Standby and Idle |
4-5mA |
|
GSM GPRS Max |
2.6A |
|
HSxPA Max |
770mA |
|
Codec |
HR, FR, EFR, AMR |
|
Echo Cancellation and Noise Reduction |
Yes |
|
DTMF |
Yes |
|
UART |
1x 8-wire |
|
USB |
USB 2.0 high speed |
|
ADC |
1 |
|
Flash LED Output |
1 |
|
SIM Interface |
1.8V or 3V |
|
Antenna Diversity |
Yes |
|
Location Solution |
gpsOne |
|
Control Options |
AT commands |
|
Management Services |
No |
|
Device Dimensions |
51 x 30 x 4.5mm |
|
Temperature Range |
-25°C to +60°C |
Key benefits:
· High-speed, broadband connectivity
· Best-in-class technical and integration support
· Easy integration
· Premium functionality and performance
· Simplified certification and commercialization
· Compact size and light weight
· Antenna diversity for improved fringe performance
· Quad-band for global connectivity
Product Application
The Sierra Wireless AirPrime MC8705 HSPA+ embedded modules enable you to expand your product development into applications requiring higher bandwidth. They take advantage of the fastest mobile broadband networks available worldwide, offering up to 21Mbps download speeds.

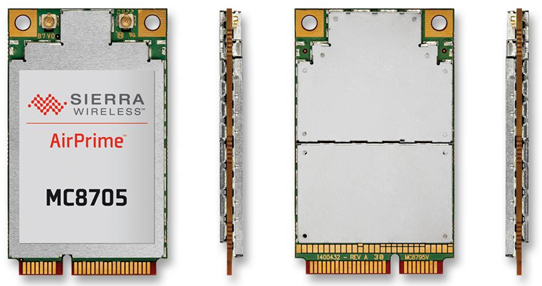

Product display:
