Product - MC8790

MC8790

MC8790

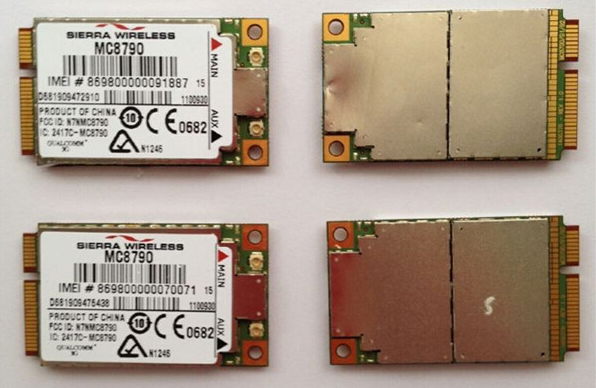

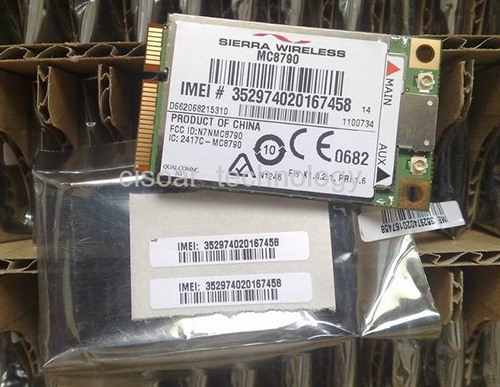

Mini 3G/3.5G 7.2Mbp Embedded   Module MC8790

Quick Overview



·        High download speed up to 7.2 Mbps & upload up to 5.76 Mbps.
(3G-850/1900/2100 MHz 2G-850/900/1800/1900 MHz)

·        Intelligent embedded modules with Mini PCI Express Card interface.

·        GPS Antenna integrated.
Worldwide usage on UMTS and EDGE/GPRS networks

·        Unlocked for worldwide providers.

AirPrime MC8790 PCI Express Mini Cards cost effectively integrate into a variety of OEM devices to offer complete wireless solutions over HSPA-capable 3G/UMTS networks. From point-of-sale devices to ruggedized laptops, the MC8790 will turn hardware devices into powerful communications tools with wireless data services.

The MC8790 PCI Express Mini Card provides wide area wireless data access at speeds up to 7.2 Mbps downlink and up to 5.8 Mbps uplink. It offers UMTS/HSPA and quad-band GSM/GPRS/EDGE network access for roaming on high-speed networks worldwide. In addition, antenna diversity improves fringe performance on global HSPA networks using the 850, 1900, and 2100 MHz bands.

. Technology

. Data services

PCI Express Mini Card

850/1900/2100 MHz WCDMA

MSM6290 Chipset

Downlink up to 7.2Mbps

UMTS with HSPA Category 8

Uplink up to 2.0Mbps (upgradeable

(7.2 Mbps downlink)

to 5.76 Mbps)

HSUPA Category 5 (2.0 Mbps uplink) &

850/900/1800/1900 MHz

Upgradeable to 5.76 Mbps

GSM/GPRS/EDGE

EDGE/GPRS MS Class 12

Downlink up to 236 Kbps

Receive equalizer with antenna

Uplink up to 236 kbps

Diversity on 850/1900/2100MHz

. Host Interface

USIM support

52-Pin Edge Connector

PC/SC interface

Pinout supports PCI-Express Mini Card

Qualcomm GpsOne® technology

Specification

. Power

USB 2.0

Input Voltage Range: 3.0 ~ 3.6 V

Software configurable LED control

Low talk current

U-SIM

Low stand-by current

. Operating systems

. Antenna diversity support

Windows®

850/1900/ 2100 MHz

XP / Vista

. Antenna Connector

Linux

50 Ohm compatible

Windows®

U. FL RF connector

CE

. Bands

Proprietary OS

850/1900/2100MHz WCDMA

. Additional functionality

Power class 3 (+24dBm)

AT command interface

850/900MHz GSM/GPRS/EDGE

CnS command interface

GSM Power class 4/EDGE E2

Software Development Kit (SDK)

1800/1900 MHz GSM/GPRS/EDGE

including Application Program

GSM Power Class 1/EDGE E2

Interface (API)

GPS/1575.42 MHz

. Package

. Environmental

Size: 51 x 30 x 4.5mm

Operating Temperature: -25 to +60º C

Weight: under 12 g

Storage Temperature: -30 to +85º C
