Product - NEO-6M

NEO-6M

NEO-6M

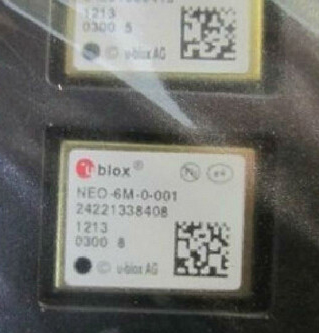

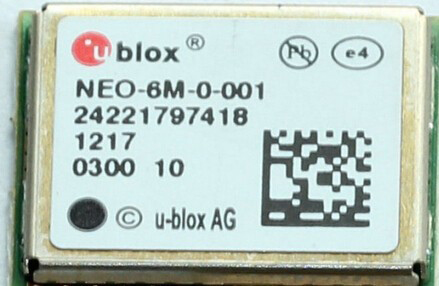

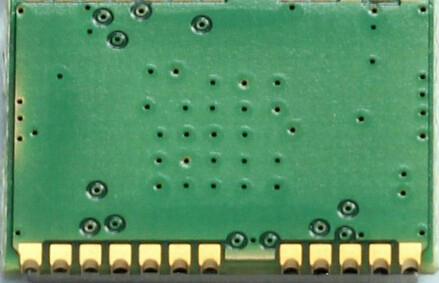

Original UBLOX GPS module –NEO-6M



Original U-blox GPS Module NEO-6M-0-001
*UART, USB, DDC (I2C compliant
*SPI interfaces
*Available in Crystal/ TCXO version






Original U-blox GPS Module NEO-6M-0-001



NEO-6 module series brings the high performance of the u-blox 6 position engine to the miniature NEO form factor. u-blox 6 has been designed with low power consumption and low costs in mind. Intelligent power management is a breakthrough for low-power applications.


These receivers combine a high level of integration capability with flexible connectivity options in a small package. This makes them perfectly suited for mass-market end products with strict size and cost requirements.

The LEA-6A and LEA-6S are ROM-based solution, whilst the LEA-6H comes with built in Flash EPROM, allowing for future firmware updates.



Highlights

·        UART, USB, DDC (I2C compliant) and SPI interfaces

·        Available in Crystal and TCXO versions

·        Onboard RTC crystal for faster warm and hot starts

·        1.8 V and 3.0 V variants

Features:

·        u-blox 6 position engine:

·        Navigate down to 162 dBm and 148 dBm coldstart

·        Faster acquisition with AssistNow Autonomous

·        Configurable power management

·        Hybrid GPS/SBAS engine (WAAS, EGNOS, MSAS)

·        Anti-jamming technology

·        Simple integration with u-blox wireless modules

·        A-GPS: AssistNow Online and AssistNow Offline services, OMA SUPL compliant

·        Backward compatible (hardware and firmware); easy migration from NEO-5 family or NEO-4S

·        LCC package for reliable and cost effective manufacturing

·        Compatible with u-blox GPS Solution for Android

·        Based on GPS chips qualified according to AEC-Q100

·        Manufactured in ISO/TS 16949 certified sites

·        Qualified according to ISO 16750



Specifications:



·        Voltage: 2.7V – 3.6V

·        Power consumption <80mW @ 1.8V

·        120mW @ 3.0V

·        Standby power 1..8V, 30uA

·        Antenna type source with passive

·        Operating temperature-40 ℃ to + 85 ℃

·        Storage temperature:-40 ℃ to + 85 ℃

·        Size 16.0*12.2mm*2.4mm

·        Precision

·        Location 2.5MCEP

·        SBAS 2.0mCEP

·        Captured cold start 29s

·        Warm start 27s

·        Secondary boot <3s

·        Warm boot <1s

·        Sensitivity

·        Capture -162dBm

·        Track -147dBm

·        Cold boot -146dBm

·        A-GPS

·        Supports AssistNow Online and AssistNow Offline

·        Run restriction

·        515m/s speed (1000)

·        Serial port 1 UART interface

·        1 USB V2.0 full speed 12Mbit/s

·        1 DDC interface

·        1 SPI interface

·        Serial and I/O voltage 3V logic level

·        Protocol NMEA, UBX binary

·        Digital I/O interface configurable time pulse

·        1 EXTINT input interface
