ME909S-120

ME909S-120

Huawei wireless communication 4G LTE module ME909S – 120 based on Hi- Silicon chipset


Advantage & Application :

ME909s-120 Mini PCI express is the first LTE cat4 module based on Hi-Silicon chipset. Which is high-quality designed LTE module in small size and standard mPCIe form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.



Specification

Size

30.4 x 51 x 3.57 mm  Mini PCIE

30 x 30 x 2.57 mm  LGA

Weight:

 <12g

Form Factor

145 pins LGA interface and Mini-PCIe

Bands:

LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20

DC-HSPA+/HSPA+/HSPA/UMTS : B1,B2,B5,B8

EDGE/GPRS/GSM: 850/900/1800/1900 MHz

Data Transfer Rate

DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps

LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4)

Interface

Mini PCIe interface

Antenna interface

USB 2.0 High speed

PCM Voice

SIM Card

LED

Power supply

Reset

Power Supply

3.2 V to 4.2 V (3.8 V recommended)

Temp Range

-40℃to 85℃

Voice

PCM Voice

DTMF

Special Features

CDC-ECM

FOTA

Firmware Update via USB

Embedded UDP/TCP/FTP(s)/HTTP(s) stack

High-speed UART

CMUX

Sleep mode

Operating System

Linux, Android, WinCE, Windows 8/10

Approvals

CE

GCF

RoHS & WEEE Compliant



ME909s-120 Mini PCI express supports eight (!) bands (B1/B2/B3/B4/B5/B7/B8/B20) in the EMEA region. It also have the form factor LGA if it suits your need better.


ME909s-120 Mini PCI express supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands.

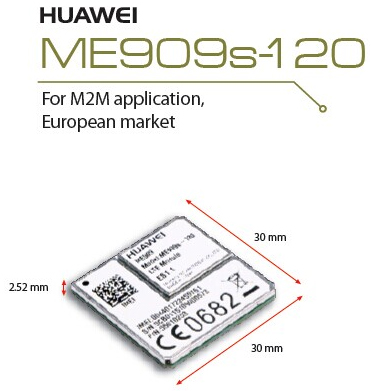

This is the mPCIe form factor of the module ME909s-120.

ME909s-120(B1/B2/B3/B4/B5/B7/B8/B20) supports EMEA region, and has two different form factor: LGA and Mini PCIe form factor.

With Huawei pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-120.



Module display:
