ME909S-821
Huawei wireless communication 4G LTE module ME909S – 821 based on Hi- Silicon chipset
Application :
Huawei ME909s-821 is a new LTE cat4 module based on Huawei Hisilicon chipset. With high quality designed small size and huawei standard LGA & Mini PCIe form factor, Huawei
ME909s-821 is especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.
Technical Specification
Huawei ME909s-821 Technical Specifications:
|
* Form Factor: |
145 pins LGA interface and Mini-PCIe |
|
* 4G LTE (FDD): |
B1,B3,B8 |
|
* 4G LTE (TDD): |
B38, B39,B40,B41 |
|
* DC-HSPA+/HSPA+/HSPA/UMTS : |
B1, B5, B8,B9 |
|
* TD-SCDMA: |
B34, B39 |
|
* EDGE/GPRS/GSM: TD-SCDMA: |
B34, B39 |
|
* LTE FDD: |
Downlink:150 Mbps, Uplink: 50 Mbps |
|
* LTE TDD: |
Downlink:112 Mbps, Uplink: 10 Mbps |
|
* DC-HSPA+ : |
Downlink:42 Mbps, Uplink: 5.76 Mbps |
|
* Power Supply: |
Mini PCIe: 3.2 V to 4.2 V (typical: 3.8 V) |
|
* Temp Range: |
-40℃to 85℃ |
|
* Voice: |
PCM Voice and DTMF |
Special Features
- CDC-ECM
- FOTA
- Firmware Update via USB
- Embedded UDP/TCP/FTP(s)/HTTP(s) stack
- High-speed UART
- CMUX
- Sleep mode
* Operating System: Linux, Android, WinCE, Windows 8/10
* Approvals: CCC, NAL, SRRC, RoHS & WEEE Compliant
* Dimensions:

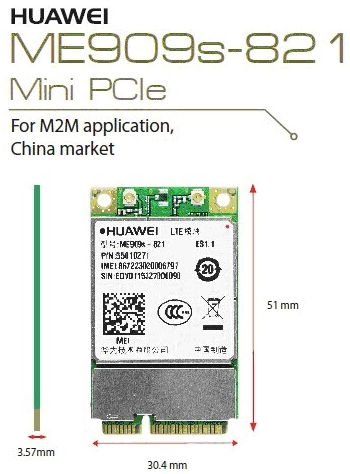

- Mini PCIe: 30.4 x 51 x 3.57 mm

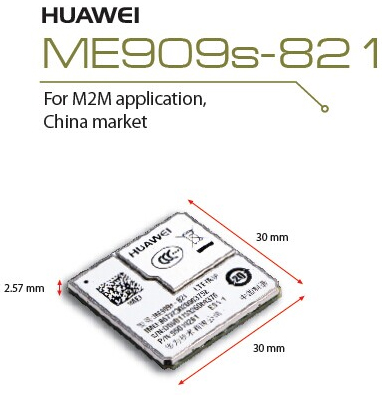

- LGA: 30 x 30 x 2.57 mm
Advantage
ME909s-821 supports 150Mbps downlink data rate, including enhanced
features like FOTA, USSD and Huawei enhanced AT commands.
ME909s-821 supports China region LTE Bands including both FDD-LTE & TDD-LTE, and has two different form factor: LGA and Mini PCIe form factor.
With Huawei pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-821.
Module display:
