ME909U-521 mini PCIE
4G LTE module ME909U-521 mini PCIE
ME909u-521 Mini PCIe is a variant of ME909u-521 with standard mini PCIe form factor. It is a high-quality LTE module designed for industrial-grade M2M applications such as vehicle telematics, asset tracking, mobile payment, industrial router, safety monitor and industrial PDAs.
ME909u-521 Mini PCIe supports 100Mbps downlink data rate, includes enhanced features like FOTA,
USSD and Huawei enhanced AT commands.
All Huawei modules comply with the RoHS directive and Regional certification.
Technical details
|
· Size |
Height 30.4mm Width 51mm Depth 3.4mm Weight <15g |
|

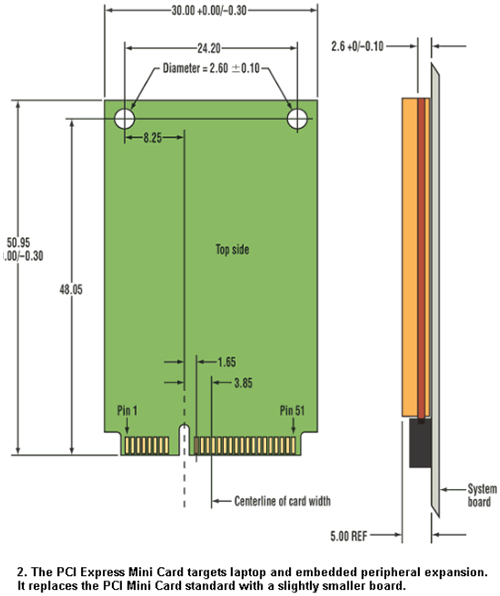

· Form Factor |
Mini-PCIe |
|
· Bands |
ME909u-521 Mini PCIe: LTE (FDD) B1/B2/B3/B5/B7/B8/B20 DC-HSPA+/HSPA+/HSPA/UMTS dual-band B1/B2/B5/B8 EDGE/ GPRS/ GSM quad-band 850/900/1800/1900 MHz |
|
· Data Transfer Rate |
LTE FDD: Downlink 100 Mbps, Uplink 50 Mbps @Bandwidth 20M (CAT3) DC-HSPA+: Downlink 42 Mbps, Uplink 5.76 Mbps |
|
· Interface |
Antenna connector PCIe interface USB 2.0 High speed SIM Card Reset |
|
· Power Supply |
3.0 V to 3.6 V (3.3 V recommended) |
|
· Voice |
PCM Voice |
|
· Temp Range |
-30℃to 60℃ |
|
· GPS/Glonass |
GPS Standalone A-GPS |
|
· Special Features |
FOTA*(developing) USSD IPV6 / IPV4*(developing) |
|
· Operating System |
Linux, Android |
|
· Approvals |
FCC RoHS |
Bands
ME909u-521 Mini PCIe:
LTE (FDD) B1/B2/B3/B5/B7/B8/B20
DC-HSPA+/HSPA+/HSPA/UMTS dual-band B1/B2/B5/B8
EDGE/ GPRS/ GSM quad-band 850/900/1800/1900 MHz
•
LTE (FDD) B1/B2/B3/B5/B7/B8/B20, all bands with diversity
• DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8, all bands
with diversity
• EDGE/GPRS/GSM 1900/1800/900/850 MHz
• GPS/GLONASS: L1
• MIMO
LTE: DL 2*2 MIMO
HSPA+/DC-HSPA+: DL 2*2 MIMO
• Output Power
LTE: +23dBm (3GPP TS 36.101 R8 Class 3)
WCDMA/HSPA+: +24dBm (Power Class 3)
EDGE 1900/1800MHz: +26dBm (Power Class E2)
EDGE 900/850MHz: +27dBm (Power Class E2)
GSM/GPRS 1900/1800MHz: +30dBm (Power Class 1)
GSM/GPRS 900/850MHz: +33dBm (Power Class 4)
• USIM (Class B and Class C)
• Power supply
3.0 V to 3.6V (typical: 3.3V)
• Temperature range
Operational: -20° C to 60° C
• Dimensions: 51 mm x 30.4 mm x 3.4 mm
• Weight: approx. 12g
• AT commands
3GPP TS 27.007 and 27.005
Huawei extended AT command
• OS: Linux, Android
Data Features:
• GPRS: DL 85.6 kbps/UL 85.6
kbps
• EDGE: DL 236.8 kbps/UL 236.8 kbps
• WCDMA CS: DL 64 kbps/UL 64 kbps
• WCDMA PS: DL 384 kbps/UL 384 kbps
• HSPA+: DL 21.6 Mbps/UL 5.76 Mbps
• DC-HSPA+: DL 43.2 Mbps/UL 5.76 Mbps
• LTE FDD: DL 100 Mbps/UL 50 Mbps @20M BW cat3
HUAWEI ME909u-521 Technical Specifications:
* LTE: (B1/B2/B3/B5/B7/B8/B20), for European market
* DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8
* EDGE/GPRS/GSM 1900/1800/900/850 MHz
The other part number fromME909 Family:
HUAWEI ME909u-121 Technical Specifications:
* LTE (B1/B2/B4/B5/B8/B13/B17), for North America market
* DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8
* EDGE/GPRS/GSM 1900/1800/900/850 MHz
HUAWEI ME909u-721 Technical Specifications:
* LTE (B1/B11/B18/B19/B21), for Japan market
* DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8
* EDGE/GPRS/GSM 1900/1800/900/850 MHz
Introduction:
The Huawei ME909u-521 (ME909E) Mini PCI Express is a LTE
module with a 145-pin LGA form factor mounted on a Mini PCI Express board,
supporting seven LTE FDD-bands. Quad-band DC-HSPA+ and quad-band GPRS/EDGE for
European network coverage is included as fall-back.
This module is part of Huawei|#@@#|s new family of modules, including MU509 (HSDPA),
MU609 (HSPA+) and ME909 (LTE) which are all pin-to-pin compatible to enable a
clear and easy path for future integration. This makes the integration of any
one of these modules very future-proof.
With their ultra-compact design and extended operating temperature range, ME909
and it|#@@#|s siblings are the perfect platform for any M2M application.
Application:
Widely used in Car tracker, industrial routers,security monitoring and so on.

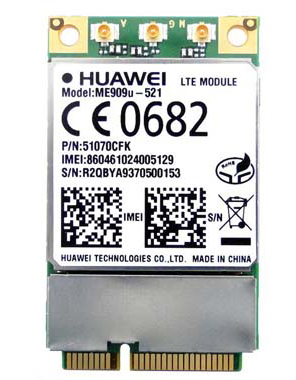

Module show:
