Product - ME909U-523 PCIE

ME909U-523 PCIE

ME909U-523 PCIE

Huawei m2m 4G LTE module ME909u-523  support LTE FDD B2/B4/B5/B17 and GPS


there are LGA and mini PCIE 2 type package


Product Introduction:

Notice:The D added to the end of the product name stands for Data. The module have the same function as before the D was added to the end.


Itis replacing the ME909u-121.


The Huawei ME909u-523D is an LTE module with a 145-pin LGA form factor, supporting seven LTE FDD bands.

Product Description:

ME909u-523 Mini PCIe is a variant of ME909u-523 with standard Mini PCIe form factor. It is high-quality designed LTE module which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.


ME909u-523 Mini PCIe supports 100Mbps downlink data rate, includes enhanced features like FOTA, USSD and Huawei enhanced AT commands.


Specification:


Form Factor

LGA  and  Mini-PCIe

Size:

30x30x2 mm  LGA

30.4x51x3.4 mini PCIE

Bands

ME909u-523 Mini PCIe:

LTE (FDD) B2/B4/B5/B17

DC-HSPA+/HSPA+/HSPA/UMTS tri-band 850/1900/AWS MHz

Data Transfer Rate

DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps

LTE FDD: Downlink:100 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT3)

Interface

Antenna connector

PCIe interface

USB 2.0 High speed

SIM Card

Reset

Power Supply

3.0 V to 3.6 V (3.3 V recommended)

Temp Range

Normal Operation: -20℃to 60℃

Extended Operation: -30℃to 70℃

GPS/Glonass

GPS Standalone

A-GPS

Glonass --- NO

Special Features

FOTA*(developing)

USSD

IPV6/IPV4*(developing)

Operating System

Linux, Android

Chipset

Qualcomm  MDM9X15

Operating Temperature

-30 °C – 75 °C

Certification

FCC,PTCRB

Carrier Certification

AT&T


Advantage:

With their ultra-compact design and extended operating temperature range, ME909 and it|#@@#|s siblings are the perfect platform for any M2M application.

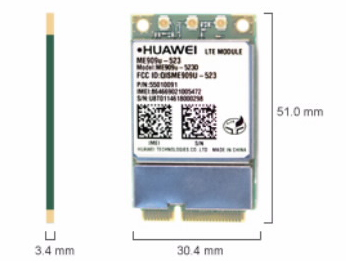

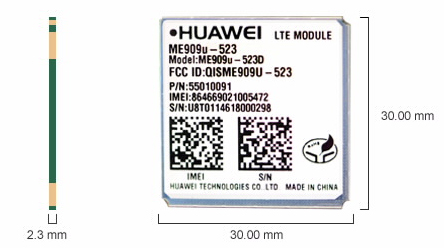

Module display:
