MC7354
New and original siera 4G MODULE MC7354--North-America
AirPrime MC7354
LTE-FDD,HSPA+,GSM/GPRS/EDGE,GSM/GPRS/EDGE,CDMA
(B1,B2,B4,B8,B13,B17,B25,BC0,BC1,BC10)
FOR North America
The Sierra Wireless MC7354 PCI Express Mini Card is a compact,
lightweight, wireless LTE-, UMTS-, and CDMA-based modem.
The MC7354 provides LTE, DC-HSPA+, HSPA+, HSDPA, HSUPA,
WCDMA, GSM, GPRS, EDGE, CDMA, and GNSS connectivity for
networking, and M2M applications over several radio frequency
bands. The device also supports 2G / 3G roaming, subject to network
operator provisioning.
The device is designed to be network operator-certified. Contact
Sierra Wireless for details.
Supported RF bands
The modem, based on Qualcomm|#@@#|s MDM9615 baseband processor,
supports data operation on LTE, DC-HSPA+, HSPA+, EDGE, GPRS,
GSM, and CDMA networks.
features
1. Mini-PCIE interface
2. FDD LTE BAND2,4,5,13,17,25
3. WCDAM/GSM support 800M/850M/900M/1900M/2100M
CDMA 1X/EVDO support 800M/1900M
4. Operation temperature: -30°C to +70°C
Storage temperature: -40°C to +85°C
5. USB 2.0 High speed interface
6. CAT3 D/L 100M bps/50M bps U/L
7.Verizon,AT&T,Sprint approvals
|

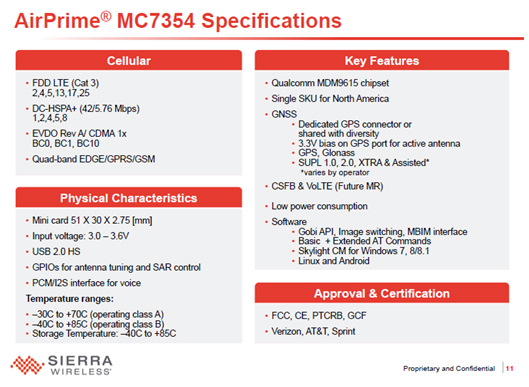

pecifications |
|
MC7355 |
MC7354 |
|
|
AIR INTERFACE |
LTE,HSPA+,GSM/GPRS/EDGE, EV-DO Rev A, 1xRTT |
LTE,HSPA+,GSM/GPRS/EDGE, EV-DO Rev A, 1xRTT |
|
DATA SPEED |
||
|
Peak Download Rate |
100 Mbps |
100 Mbps |
|
Peak Upload Rate |
50 Mbps |
50 Mbps |
|
FREQUENCY BANDS |
||
|
LTE |
1900(B2), AWS(B4) 850(B5), 700 (B13), 700(B17), 1900(B25) |
1900(B2), AWS(B4) 850(B5), 700 (B13), 700(B17), 1900(B25) |
|
WCDMA |
2100(B1), 1900(B2),AWS(B4), 850(B5), 900(B8) |
2100(B1), 1900(B2),AWS(B4), 850(B5), 900(B8) |
|
CDMA 1xRTT/EV-DO Rev A |
800(BC0), 1900(BC1), 1700(BC10) |
800(BC0), 1900(BC1), 1700(BC10) |
|
GSM/GPRS/EDGE |
Quad-Band |
Quad-Band |
|
APPROVALS |
||
|
Regulatory |
FCC, IC, PTCRB, NCC |
FCC, PTCRB, NCC |
|
Carrier |
AT&T, Sprint, Verizon |
Planned: AT&T, Verizon, Sprint |
|
CPU PERFORMANCES |
||
|
IO voltage |
1.8V |
1.8V |
|
AUDIO |
||
|
Analog audio |
||
|
Digital audio |
PCM/I2S |
PCM/I2S |
|
Codec |
||
|
Echo cancellation & noise reduction |
Yes |
Yes |
|
DTMF |
Yes |
Yes |
