TOP-SMA-1
Male plug SMA Straight crimp RF coaxial connector use for RG174 TOP-SMA-1
Type 1: -A: SMA straight male for RG174
Type 2: -B: SMA straight RP male for RG174
Introduction
SMA Male Straight Crimp Connector.
SMA connector series is small type thread connectors manufactured according to MIL-C-39012, Its characteristics are as follows: long life, excellent performance, high reliability .It is widely used in microwave equipments and digital telecommunication equipments.
SMA Connector, SMA RF
connector
1)male and female
2)cable crimp
straight/R/A/PCB mount type
3)50OHM,0-12.4GHz
4)RoHS/ISO9001
|
Electric Data |
||
|
Characteristic Impedance |
50 ohm |
|
|
Frequency Range |
Flexible Cable: DC-12.4GHz |
|
|
Working Voltage |
335 VRMS(max at sea level) |
|
|
Dielectric Withstanding Voltage |
1000 VRMS(min at sea level) |
|
|
VSWR |
straight connector with flexible cable ≤1.15+0.02f |
|
|
Contact Resistance |
Inner: 3 milliohms(max) |
|
|
Outer: 2 milliohms(max) |
||
|
Insulation Resistance |
5000 me ohms (min) |
|
|
Mechanical Data |
||
|
Durability Mating |
500 Cycles min. |
|
|
Material Data |
||
|
Connector Parts |
Materials |
Plating Finish |
|
Body |
Brass or SS |
Gold or aestivated |
|
Male Pin |
Brass |
Gold |
|
Insulators |
PTFE |
N/A |
|
Ferrules |
Copper alloy |
Nickel |
|
Gasket |
Silicone rubber |
N/A |
|
Environmental Data |
||
|
Temperature Range |
-65~+165℃ |
|
Note:We can provide other materials and plating specifications according to customers requirements
Product Range
· Cable Connectors (straight and right angle) for flexible, semi-flex and semi-rigid cables
· PCB connectors (straight and right angle)
· Panel connectors in various flanges
· Adaptors
Application
· Cable Assembly
· Antenna
· Microwave Components
· Aero
· Instrumentation
· W-LAN
· Vehicle Tracking System
· GPS
· Telecommunications
· Cellular Mobile System

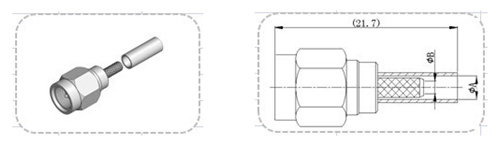

Drawing:
