TOP-SMA-11
SMA Jack Straight Panel connector TOP-SMA11 Straight female for solder
Introduction:
RF Coaxial Mini SMA Connector with Female S/T Jack and 2-hole Panel SQ Flange for Panel Mount connector
2 type:
1. TOP-SMA11–A : Straight female
2. TOP-SMA11–B: Straight RP female
SMA FEATURES AND BENEFITS
· Light weight, compact and vibration proof design
· Low cost commercial grade (Brass SMA) available in nickel or gold plating
· Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables
Applications:
· Antenna
· Aero
· Base Stations
· Cable Assembly
· GPS
· Instrumentation
· Microwave Components
· Mobile Phone system
· PC/LAN
· Telecommunications
SMA CONNECTOR SPECIFICATIONS
Mechanical:
|
Mating Cycles |
≥ 500 |
|
Coupling Torque |
80Ncm |
|
Materiel: C-Ring |
Stainless, Copper |
|
Materiel: Outer Conductor |
CuZn39Pb3, CuBe, CuSn |
|
Materiel: Other Parts |
CuZn39Pb3, CuBe, CuSn |
|
Materiel: Insulators |
PTFE |
|
Materiel: Gasket |
Silicon |
|
Finish: Inner Conductor |
Au |
|
Finish: Outer Conductor |
Au, Ni |
|
Finish: Other Conductor |
Au, Ni |
|
Climatic |
55/155/56d |
Electrical:
|
Contact Resistance: Inner Conductor |
≤0.003Ω |
|
Contact Resistance: outer Conductor |
≤0.002Ω |
|
Insulation Resistance |
≥5GΩ |
|
Voltage Poof |
1kV |
|
Impedance |
50Ω |
|
Working Voltage |
≤335V |
|
Frequency |
0 ~ 18GHz 0 ~ 12.4GHz (Flexible Cable) 0 ~ 18GHz (Semi-Rigid) |
|
VSWR |
1.3 max (Straight) 1.5 max (R/A) |

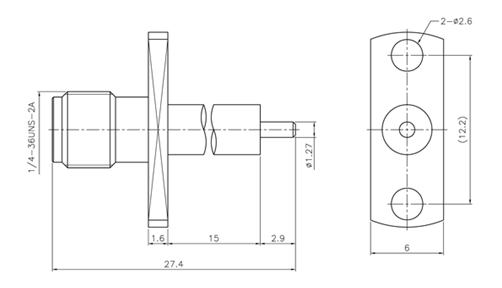

Drawing :
