Product - SIM800 EVB KIT

SIM800 EVB KIT

SIM800 EVB KIT

NEW MINI SIM800  development kit for studying and testing module performance, designed by TOP Electronics.

Same application and same performance with SIMCOM development kit. But our evb kit advantage is :

* competitive price*

*Optimization antenna designing*

*ESD protection*

*Technical support*

*MINI size, easier taking"

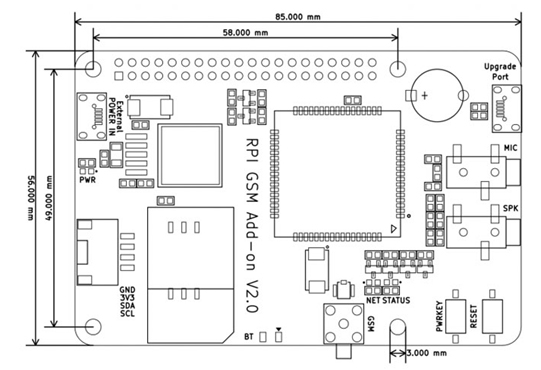

Drawing:


Raspberry PI Pin N.O.

Pin name

Description

1

3.3V

2

5V

3

GPIO02

SDA

4

5V

5

GPIO03

SCL

6

GND

7

GPIO04

8

GPIO14

GSM_DIN

9

GND

10

GPIO15

GSM_DOUT

11

GPIO17

SIM800-PWRKEY

12

GPIO18

SIM800-RST

13

GPIO27

14

GND

15

GPIO22

16

GPIO23

17

3.3V

18

GPIO24

19

GPIO10

SPI_MOSI

20

GND

21

GPIO09

SPI_MISO

22

GPIO25

23

GPIO11

SPI_SCK

24

GPIO08

SPI_CE0

25

GND

26

GPIO07

SPI_CE1

27

ID_SD

28

ID_SC

29

GPIO05

30

GND

31

GPIO06

32

GPIO12

33

GPIO13

34

GND

35

GPIO19

36

GPIO16

37

GPIO26

38

GPIO20

39

GND

40

GPIO21

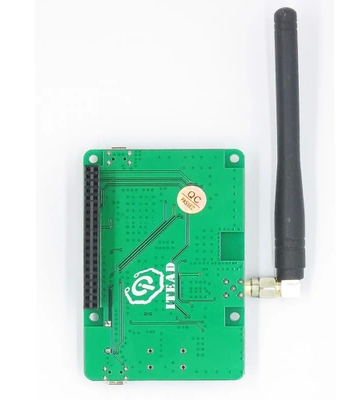

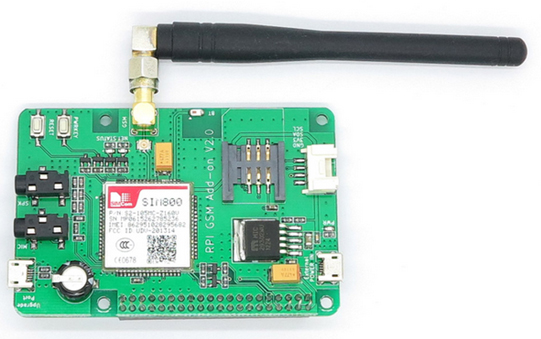

One set evb kit includes(as below picture):

----EVB with SIM800:

----1pcs GSM antenna
