Product - SIM5320E EVB KIT
SIM5320E EVB KIT
NEW MINI SIM5320E V2.0 development kit for studying and testing module performance, designed by TOP Electronics.
Same application and same performance with SIMCOM development kit. But our evb kit advantage is :
* competitive price*
*Optimization antenna designing*
*ESD protection*
*Technical support*
*MINI size, easier taking"
"USB to USB power, easier connecting with PC
SIMCom Wireless Solutions (SIMCom) introduces a cost-effective 3G/HSDPA SIM5320 in the first quarter.The dimension of SIM5320 is 30x30x2.9 (mm), which is compact enough for saving the weight and space of the customers’ products effectively and is perfect for portable and less-space required layout applications.The embedded GPS and A-GPS enable SIM5320 to incorporate position location capability for customers’ applications without extra cost, which makes customers’ GPS development much simpler and faster.it also support many software features, including embedded LUA script, TCP/UDP, FTP/FTPS, HTTP/HTTPS, SMTP/POP3 and MMS etc.

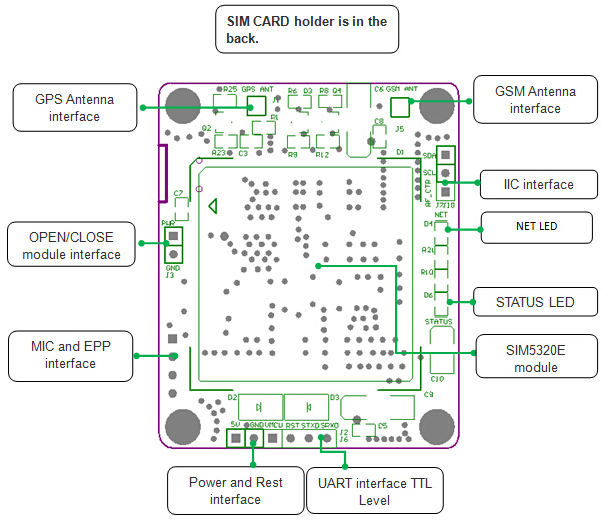

One set evb kit includes(as below picture):
----EVB with SIM5320A or SIM5320E module(CHOOSE the band you use):
SIM5320A:Dual-Band UMTS/HSDPA 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
SIM5320E:Dual-Band UMTS/HSDPA 900/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
----1pcs USB power cable
----1pcs GPS antenna
----1pcs GSM antenna
