Product - USB to MINI PCIE

USB to MINI PCIE

USB to MINI PCIE

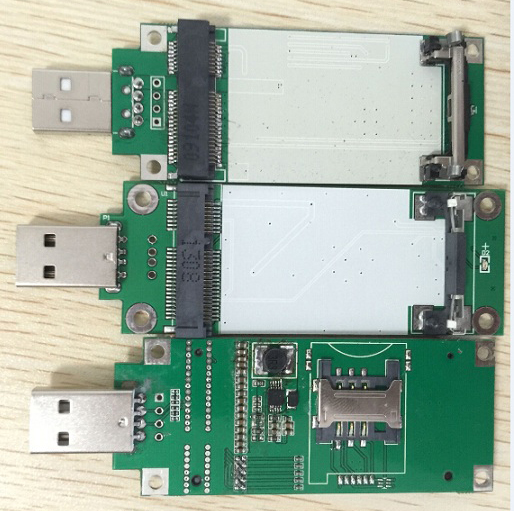

3G  4G module dedicated MINI PCIE to USB development adapter  for testing



Feature:

The Mini PCIE Adapter board with 52pin interface defines a USB signal and 3.3V voltage, is specifically designed to suit the mini PCIE format ,the riser is through the USB interface 5V voltage LDO chip converts 3.3V, supply module and USIM / SIM work, signal bus for USB signals






This carrier board provides a solution for customers who were using the UART feature of the MC series modules.  The mini PCIe adapter board offers an alternative now that there is no Sierra Wireless product in MC Series footprint.




Specifications Description:

1. Product Dimensions: 85 * 31mm
 2.Mini PCI-E is designed to meet industry specifications version 1.30
 3.USB designed to meet industry standards USB 2.0, backward compatible with 1.1 specification
 4. The full-height riser fit size (30 * 50-51mm) WWAN / 3G / WiFi modules (USB bus)
 5. Working status LED time display
 6. The product does not require any software drivers





Advantage:

The Mini PCI Express to USB adapter is designed to ease development and testing of systems intended to use a Mini PCI Express module.
Insert your USB type PCIe module such as HSPA, GPS, 802.11a/b/g to the adapter and then plug it in the USB port.

With Simple operation  and cheaper price, it is very popular by customers.
