7447709471
-
470µH Inductance – Provides substantial energy storage for buck, boost, and buck-boost converters.
-
Shielded Ferrite Core – Reduces stray magnetic fields and prevents EMI coupling to nearby components.
-
1.4A Rated Current / 1.5A Saturation Current – Handles moderate loads with safe saturation headroom.
-
AEC-Q200 Qualified – Compliant with automotive passive component reliability standards.
-
-40°C to +125°C Operating Range – Suitable for under-hood and industrial high-temperature environments.
-
Low DC Resistance (RDC typical 0.42Ω) – Minimizes conduction losses and improves efficiency.
-
12×12×8 mm SMD Package – Industry-standard footprint for automated PCB assembly.
-
DC-DC Converters – Output filtering and energy storage in buck, boost, SEPIC, and buck-boost topologies.
-
Power Supplies – Switching power supplies for industrial controls and telecommunications equipment.
-
Automotive Electronics – Infotainment systems, ADAS cameras, LED lighting modules, and body control units.
-
LED Drivers – Inductive current regulation for constant-current LED strings.
-
Industrial Automation – Sensor interfaces, PLC I/O modules, and motor drive auxiliary supplies.
-
Battery-Powered Devices – Voltage regulation in portable instruments and medical devices.
-
EMI Filtering – Noise suppression on input/output lines in conjunction with capacitors.
|
category
Inductors, coils, chokes
Fixed inductor
|
Shielding
Shielding
|
|
manufacturer
Würth Elektronik
|
DC Resistor (DCR)
560 milliohms maximum
|
|
series
WE-PD
|
Frequency - self-resonant
1.8MHz
|
|
cms-packaging
Tape and Reel (TR)
Shear Belt (CT)
Digi-Reel® won the custom tape and tape
|
grade
AEC-Q200
|
|
cms-part-status
On sale
|
Operating temperature
-40°C ~ 125°C
|
|
Type
Drum core, wire wound type
|
Inductance frequency - test
1 kHz
|
|
Material - core
Manganese-zinc ferrite (MnZn)
|
Mounting type
Surface mount type
|
|
Induction
470 µH
|
Package/Enclosure
Non-standard
|
|
Tolerance
±20%
|

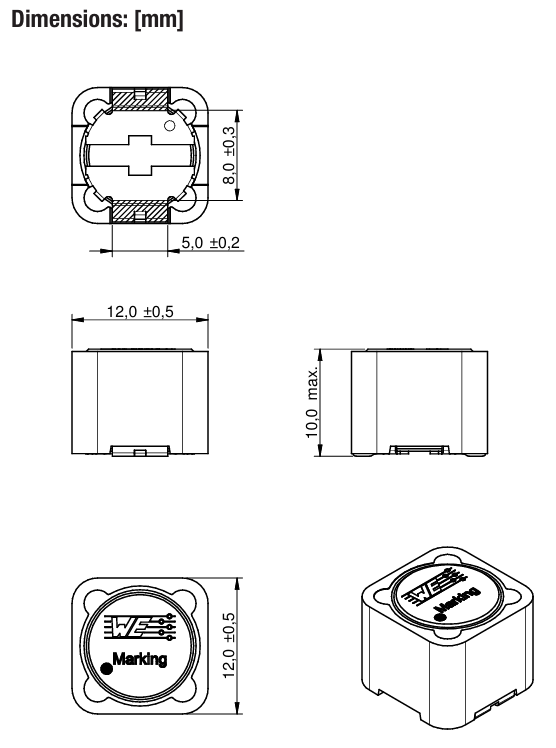

Size / Dimensions
0.472" L x 0.472" W (12.00mm x 12.00mm)
|
|
Rated current (amps)
1.4 A
|
Height - Mounting (max)
0.394"(10.00mm)
|
|
Current - Saturation (ISAT)
1.5A
|
